Front wing
Compare the listed wing area, span and width. F-series front-wing areas range from approximately 760 to 2,500 cm².
Hydrofoil sets / seven-model range
Hydrofoil sets built around wing, mast and fuselage specs
Compare seven hydrofoil models by front-wing area, rear-wing size, mast length, fuselage dimensions and mounting details where applicable. Start with a reference model, then confirm the material and assembly specification for sampling and quotation.
- 7
- F-series models
- 760-2,500 cm²
- listed front-wing area range
- 60-90 cm
- mast lengths across the range
Complete hydrofoil assembly
What is included in a hydrofoil set?
A complete hydrofoil set is specified as connected components rather than one isolated wing. The exact construction and supplied hardware remain tied to the selected model.
Compare complete specifications ↘Rear wing / stabilizer
Rear-wing dimensions and area are model-specific and should remain paired with the chosen front wing and fuselage.
Mast
Models use listed mast lengths or selectable 60, 70, 80 and 90 cm options. These are mast-length choices, not mechanically adjustable masts.
Fuselage & mounting
Fuselage length varies by model. US Box adapters are listed only for F004 and F005; confirm other mounting hardware with the quotation.
Seven model specifications
Compare seven hydrofoil set models
Use the model number with its wing dimensions, mast and fuselage specification. Any unlisted dimension must be confirmed through the selected sample.

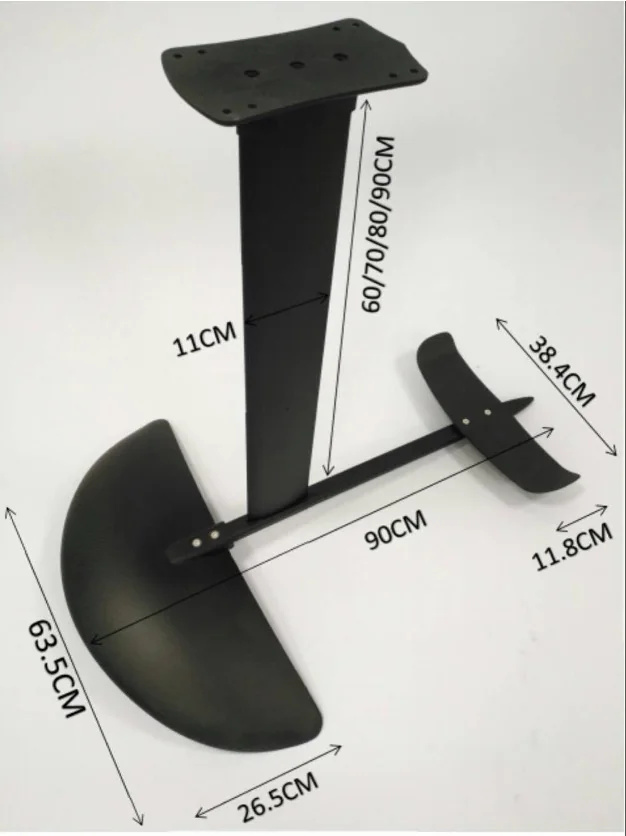

01 / F001
F001 hydrofoil set
Approx. 1,450 cm² front wing
A carbon-fiberglass wing set with four selectable hollow aluminum mast lengths. Confirm the final fuselage and supplied mounting components in the sample specification.
- Front wing
- 63.5 × 26 cm
- Rear wing
- 38.5 × 12 cm
- Mast
- 60 / 70 / 80 / 90 cm options
- Fuselage
- 72 cm listed specification
- Construction
- 3K carbon-fiberglass wings; hollow aluminum mast
- Mounting
- Not listed

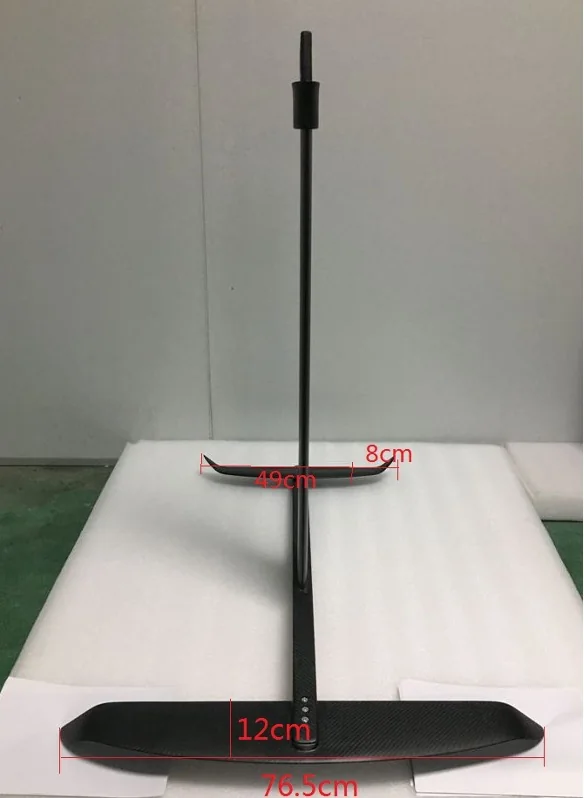

02 / F002
F002 hydrofoil set
Approx. 760 cm² front wing
The smallest listed front-wing area in the current range, paired with an 89 cm mast and 96 cm fuselage. Mast material should be confirmed for the selected build.
- Front wing
- 76.5 × 12 cm
- Rear wing
- 49 × 8 cm
- Mast
- 89 cm
- Fuselage
- 96 cm
- Construction
- 3K carbon-fiberglass foil construction
- Mounting
- Not listed

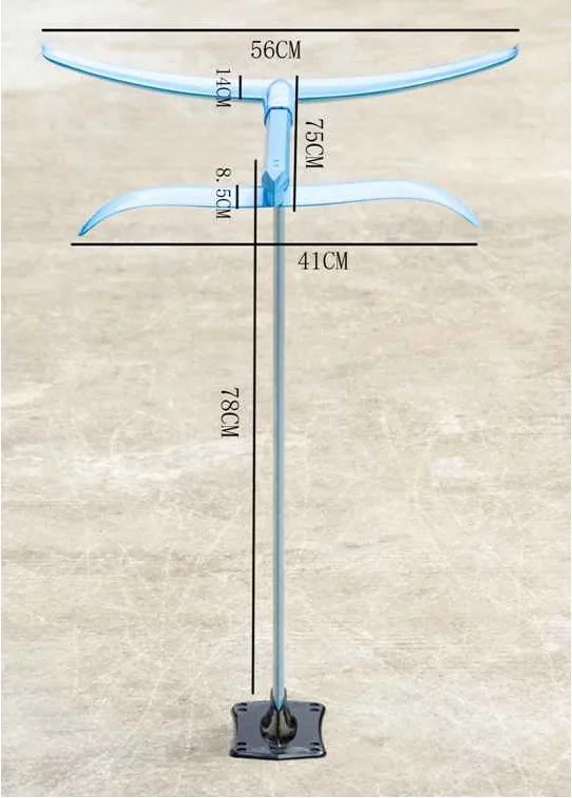

03 / F003
F003 hydrofoil set
Front-wing area to confirm
A carbon-fiberglass wing configuration with an aluminum fuselage and four available hollow aluminum mast lengths. Confirm the wing areas and fuselage length in the sample specification.
- Front wing
- 56 × 14 cm
- Rear wing
- 42 × 8.5 cm
- Mast
- 60 / 70 / 80 / 90 cm options
- Fuselage
- Aluminum; length to confirm
- Construction
- 3K carbon-fiberglass wings; aluminum fuselage and hollow aluminum mast
- Mounting
- Not listed

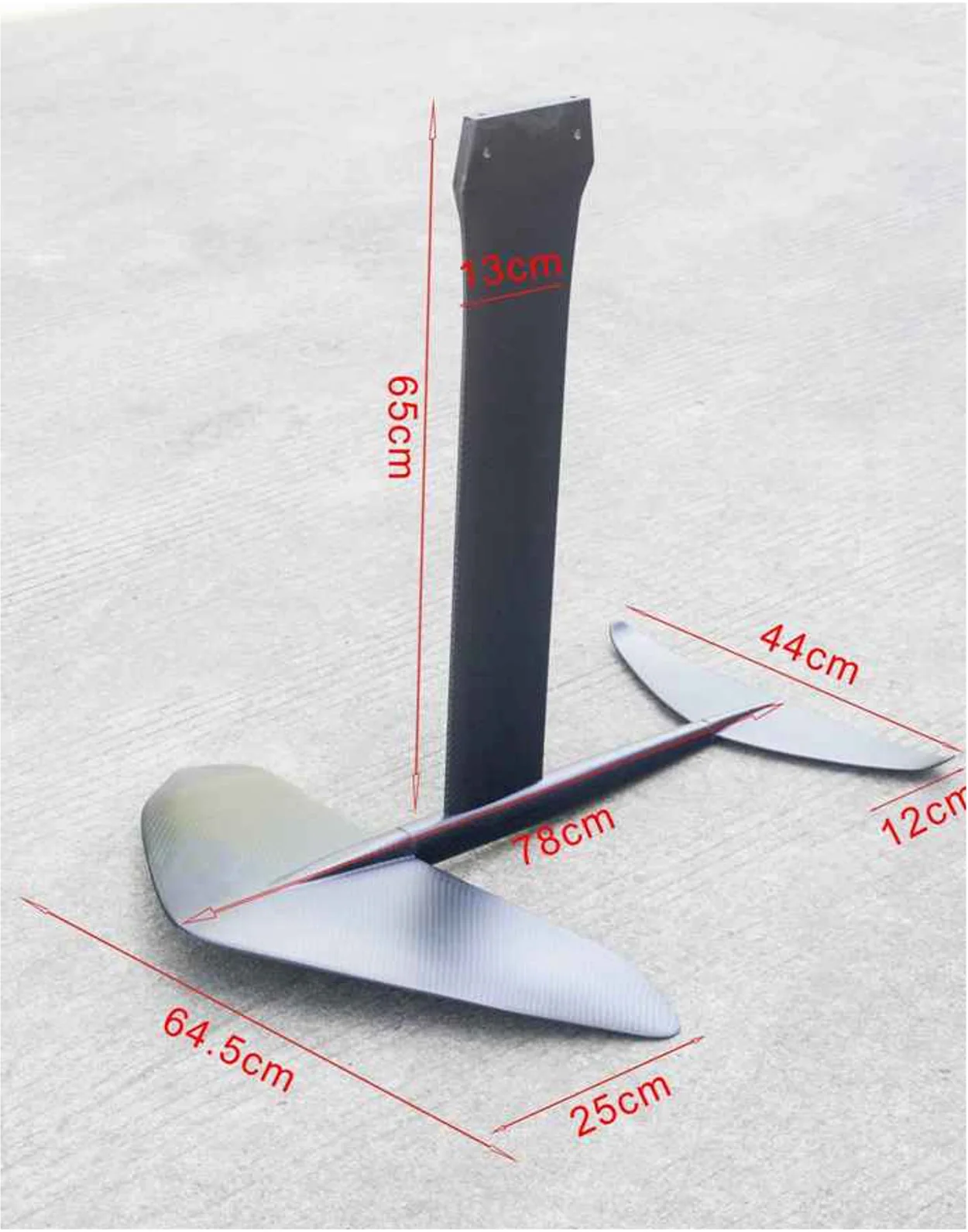

04 / F004
F004 hydrofoil set
1,035 cm² front wing
A carbon fiber hydrofoil set with a 65 cm mast, 78 cm fuselage and two listed US Box adapters. Confirm the supplied mounting hardware with the quotation.
- Front wing
- 64.5 × 25 cm
- Rear wing
- 44 × 12 cm
- Mast
- 65 cm
- Fuselage
- 78 cm
- Construction
- Carbon fiber foil construction
- Mounting
- 2 × US Box Adapter

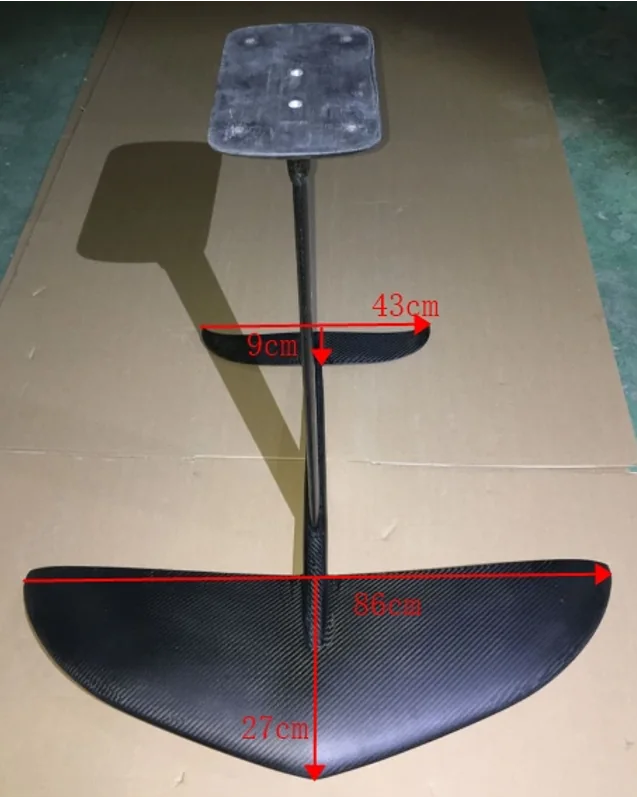

05 / F005
F005 hydrofoil set
Approx. 1,750 cm² front wing
A carbon fiber set with the larger of the two listed US Box configurations, using an 86 × 27 cm front wing and 65 cm mast.
- Front wing
- 86 × 27 cm
- Rear wing
- 43 × 9 cm
- Mast
- 65 cm
- Fuselage
- 78.5 cm
- Construction
- Carbon fiber foil construction
- Mounting
- 2 × US Box Adapter
06 / F006
F006 hydrofoil set
Approx. 2,500 cm² front wing
The largest listed front-wing area in the range, combined with a 72 cm fuselage and four selectable hollow aluminum mast lengths.
- Front wing
- 104 × 33 cm
- Rear wing
- 53 × 10.5 cm
- Mast
- 60 / 70 / 80 / 90 cm options
- Fuselage
- 72 cm
- Construction
- 3K carbon-fiberglass wings; hollow aluminum mast
- Mounting
- Not listed

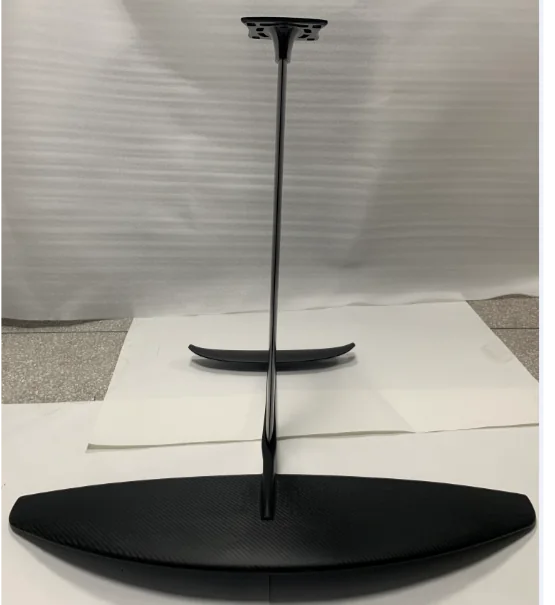

07 / F008
F008 hydrofoil set
Approx. 1,600 cm² front wing
A carbon-fiberglass set with a 60 cm fuselage and four mast-length options. Confirm the wing widths in the sample specification.
- Front wing
- 88.8 cm span; width to confirm
- Rear wing
- 42 cm span; width to confirm
- Mast
- 60 / 70 / 80 / 90 cm options
- Fuselage
- 60 cm
- Construction
- 3K carbon-fiberglass wings; hollow aluminum mast
- Mounting
- Not listed
Front-wing area comparison
Compare by listed front-wing area
Area is one specification input, not a stand-alone performance claim. Application, construction and the full assembly must be reviewed together.
F002760 cm²
F0041,035 cm²
F0011,450 cm²
F0081,600 cm²
F0051,750 cm²
F0062,500 cm²
F003: Confirm the front-wing area in the sample specification.
Specify the connected system
Front wing, rear wing, mast and fuselage
A hydrofoil kit quotation should keep every major component tied to one reference model. Mixing a wing from one model with a mast or fuselage from another requires a separate feasibility review.
Wing geometry
State the front- and rear-wing dimensions together with the listed area.
Mast specification
State the required mast length and material for the selected model.
Fuselage
Confirm fuselage length and material with the selected assembly and sample.
Mounting interface
State the required board interface and matching mounting hardware.
Construction comparison
Carbon fiber vs carbon-fiberglass construction
Use the material wording associated with the selected model. Describe the complete assembly as full carbon only when every relevant component is confirmed as carbon fiber.
F004 · F005
Both models are listed as carbon fiber foils and include two US Box adapters. Confirm mast and fuselage material separately.
F001 · F002 · F003 · F006 · F008
F001, F003, F006 and F008 pair the wings with hollow aluminum mast options. Confirm the F002 mast material with the selected sample.
Application review
Surf, wing, SUP and kite hydrofoil projects
Tell us the intended application before selecting a model. We will review the complete project requirements before recommending a model and assembly specification.
Surf hydrofoil
Share the board, rider and target-use information needed to review a surf foil assembly.
Wing foil hydrofoil
State the wing foil application together with the required board interface and mast length.
SUP hydrofoil
Provide the SUP board construction, mounting requirement and intended use for model review.
Kite hydrofoil
Describe the kite foil project, board interface, mast length and complete assembly requirements for model review.
Mounting & compatibility
US Box adapter and mounting options
F004 and F005 each list two US Box adapters. For other models, send the board interface and mounting requirements so the matching hardware can be reviewed with the selected assembly.
Discuss board compatibility65 cm mast · 78 cm fuselage
65 cm mast · 78.5 cm fuselage
Send the board interface and hardware requirements with the inquiry.
Full specification comparison
Hydrofoil set specifications by model
Reference the model number with the complete component specification when requesting a sample or quotation.
| Model | Construction | Front wing | Rear wing | Mast | Fuselage | Adapter |
|---|---|---|---|---|---|---|
| F001 | 3K carbon-fiberglass wings; hollow aluminum mast | 63.5 × 26 cm Approx. 1,450 cm² | 38.5 × 12 cm Approx. 390 cm² | 60 / 70 / 80 / 90 cm options | 72 cm listed specification | Not listed |
| F002 | 3K carbon-fiberglass foil construction | 76.5 × 12 cm Approx. 760 cm² | 49 × 8 cm Approx. 127 cm² | 89 cm | 96 cm | Not listed |
| F003 | 3K carbon-fiberglass wings; aluminum fuselage and hollow aluminum mast | 56 × 14 cm Confirm for selected sample | 42 × 8.5 cm Confirm for selected sample | 60 / 70 / 80 / 90 cm options | Aluminum; length to confirm | Not listed |
| F004 | Carbon fiber foil construction | 64.5 × 25 cm 1,035 cm² | 44 × 12 cm Approx. 436 cm² | 65 cm | 78 cm | 2 × US Box Adapter |
| F005 | Carbon fiber foil construction | 86 × 27 cm Approx. 1,750 cm² | 43 × 9 cm Approx. 302 cm² | 65 cm | 78.5 cm | 2 × US Box Adapter |
| F006 | 3K carbon-fiberglass wings; hollow aluminum mast | 104 × 33 cm Approx. 2,500 cm² | 53 × 10.5 cm Approx. 396 cm² | 60 / 70 / 80 / 90 cm options | 72 cm | Not listed |
| F008 | 3K carbon-fiberglass wings; hollow aluminum mast | 88.8 cm span; width to confirm Approx. 1,600 cm² | 42 cm span; width to confirm Approx. 240 cm² | 60 / 70 / 80 / 90 cm options | 60 cm | Not listed |
For quotation: Dimensions and component materials outside the listed model specification require feasibility review and sample confirmation.
Sampling & quality control
Approve the assembly before bulk production
The approved sample should identify the exact wings, mast, fuselage, mounting components, finish and packaging. Inspection points are then agreed around that reference.
Prepare a sample briefComponent check
Verify model, wing dimensions, mast length, fuselage and mounting hardware.
Assembly review
Check fit, connection points and the complete supplied configuration.
Surface review
Approve material appearance, finish, graphics and visible details.
Packaging reference
Confirm component protection, individual packing, labels and cartons.
Hydrofoil project brief
Nine details to send for an actionable quotation
More complete input reduces the number of clarification rounds before sampling.
- Reference F-series model
- Surf, wing, SUP or kite application
- Front-wing requirement
- Rear-wing requirement
- Mast length
- Fuselage specification
- Board interface or adapter
- Target quantity and sample needs
- Branding and packaging
Hydrofoil set questions
Answers for product and purchasing teams
Choose the closest model, then send the application and complete assembly requirements.
Ask about a hydrofoil setWhat is included in a complete hydrofoil set?
A hydrofoil set is built around a front wing, rear wing or stabilizer, mast and fuselage. Mounting components and adapters vary by model, so the exact supplied assembly and hardware are confirmed in the quotation and approved sample specification.
How do the seven hydrofoil models differ?
F001, F002, F003, F004, F005, F006 and F008 differ in wing construction, front- and rear-wing dimensions, wing area where listed, mast length, fuselage length and available mounting components.
What front-wing areas are available?
The listed range runs from approximately 760 cm² for F002 to approximately 2,500 cm² for F006. F003 wing area must be confirmed for the selected sample.
What mast lengths are available by model?
F001, F003, F006 and F008 list 60, 70, 80 and 90 cm hollow aluminum mast options. F002 lists an 89 cm mast. F004 and F005 list 65 cm masts.
Can mast length be customized?
F001, F003, F006 and F008 have selectable mast lengths. Send the required mast length with the reference model so availability and construction can be confirmed before sampling.
Which models use carbon fiber construction?
F004 and F005 are listed with carbon fiber foil construction. The final material breakdown for every component should still be stated in the quotation and sample specification.
Which models use carbon-fiberglass wings with aluminum masts?
F001, F003, F006 and F008 list 3K carbon-fiberglass wing construction with hollow aluminum mast options. F003 also explicitly lists an aluminum fuselage.
Which models include a US Box adapter?
F004 and F005 each list two US Box adapters. The other models do not carry a universal board-compatibility claim.
What information should I send for an OEM hydrofoil quotation?
Send the reference model, intended application, front- and rear-wing requirements, mast length, fuselage requirement, mounting or adapter requirement, target quantity, branding, sample checks and packaging details.
Start with an F-series model
Request a hydrofoil set quotation
Send the reference model, intended application, mast length, mounting requirement and target quantity. Aaron Deng will coordinate the first product and quotation review.
