Dragon boat paddles / carbon blade range
Choose from four carbon-blade models in lengths from 115 to 130 cm, with Ø29 mm fiberglass or carbon fiber shaft options. Compare blade profiles and length first, then review branding, finish, sampling and packaging requirements with our team.
Four carbon blade profiles
Compare the blade profile, dimensions and overall length of LZ04, LZ05, LZ06 and LZ07. Once a reference model is selected, confirm the final construction and dimensions in the sample specification.
LZ04 offers the broadest listed length range in this group at 115–130 cm. Its 48.5 × 17.5 cm carbon fiber blade can be paired with a Ø29 mm fiberglass or carbon fiber shaft.

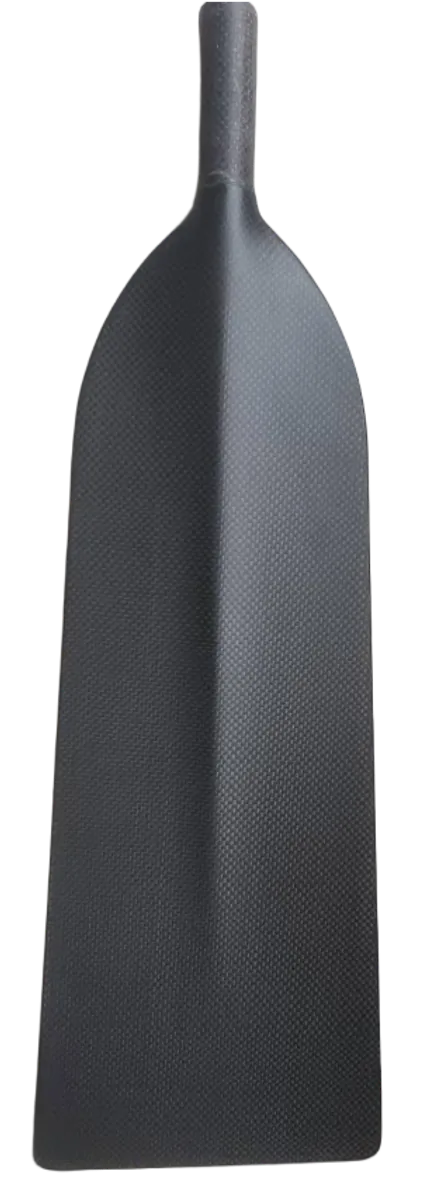

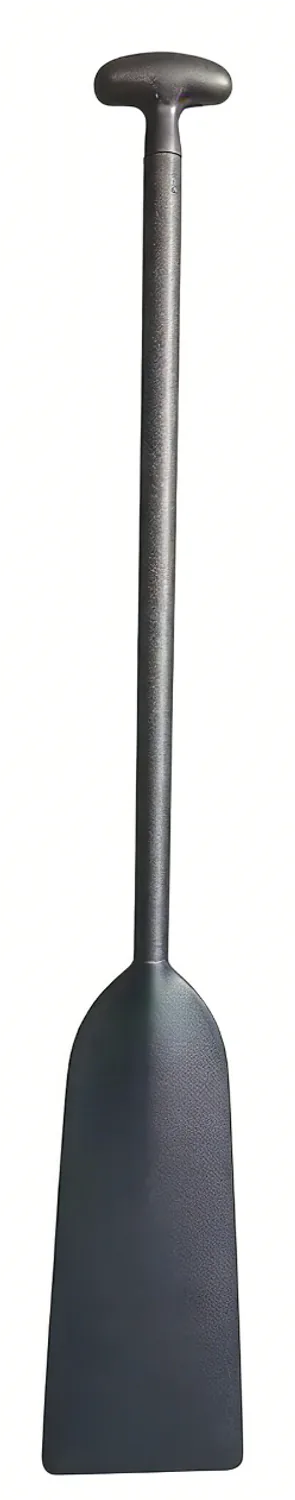

LZ05 is available in 125 and 130 cm lengths, with a 48.1 × 17.9 cm carbon fiber blade. The Ø29 mm shaft can be specified in fiberglass or carbon fiber, depending on the required construction.
LZ06 has a 47.9 × 18 cm carbon fiber blade and is available in 125 or 130 cm lengths. Specify a Ø29 mm fiberglass or carbon fiber shaft when preparing the sample and quotation.

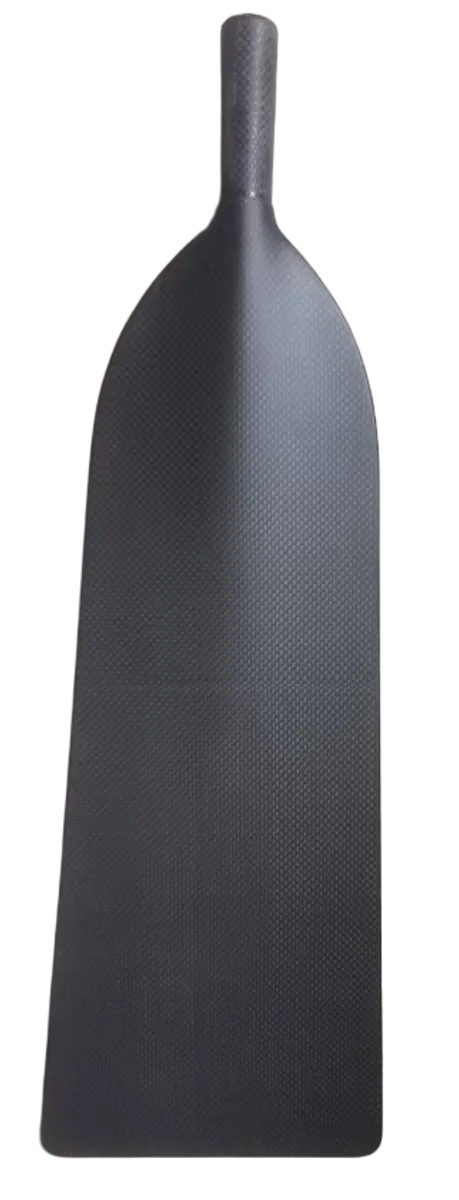

LZ07 shares the 47.9 × 18 cm blade dimensions and 125 / 130 cm length options of LZ06, but uses a distinct blade profile. Compare the model images and approve the preferred profile through a physical sample before production.
Dragon boat paddle specifications
Use this table to select a reference model. Any requirement outside the dimensions shown should be reviewed before sampling.
| Model | Format | Overall length | Blade size and material | Shaft |
|---|---|---|---|---|
| LZ04 | Adjustable length range | 115-130 cm | 48.5 × 17.5 cm carbon | Ø29 mm fiberglass or carbon |
| LZ05 | 125 and 130 cm options | 125 / 130 cm | 48.1 × 17.9 cm carbon | Ø29 mm fiberglass or carbon |
| LZ06 | 125 and 130 cm options | 125 / 130 cm | 47.9 × 18 cm carbon | Ø29 mm fiberglass or carbon |
| LZ07 | 125 and 130 cm options | 125 / 130 cm | 47.9 × 18 cm carbon | Ø29 mm fiberglass or carbon |
LZ06 and LZ07: The stated measurements are the same. Treat the model number, product image and approved sample as part of the final specification.
Blade and shaft construction
All four LZ models use carbon fiber blades, while the shaft can be fiberglass or carbon fiber. Specify both parts separately so the quotation and sample reflect the intended construction.
Carbon is listed for every LZ blade. Keep the model number and blade dimensions with the material description.
A Ø29 mm fiberglass shaft can be selected where the model quotation confirms this construction.
A Ø29 mm carbon shaft is also listed. Confirm the chosen shaft with the length and blade model.
Use this description only when the approved build includes both a carbon blade and a carbon shaft.
Prepare a useful paddle brief
Confirm these six details before sampling so we can match the right LZ model, prepare the sample specification and quote the requested configuration accurately.
Prepare your project briefSelect LZ04, LZ05, LZ06 or LZ07, or send a photo of the profile you want us to review.
Confirm the required overall length within the available range and whether more than one size is needed.
Choose a Ø29 mm fiberglass or carbon fiber shaft and confirm any grip or handle requirements.
Provide logo files, Pantone colors, print coverage and the preferred surface appearance.
Tell us which dimensions, appearance details or testing points should be checked during sample review.
Share target quantity, destination market, individual packaging requirements and carton specifications.

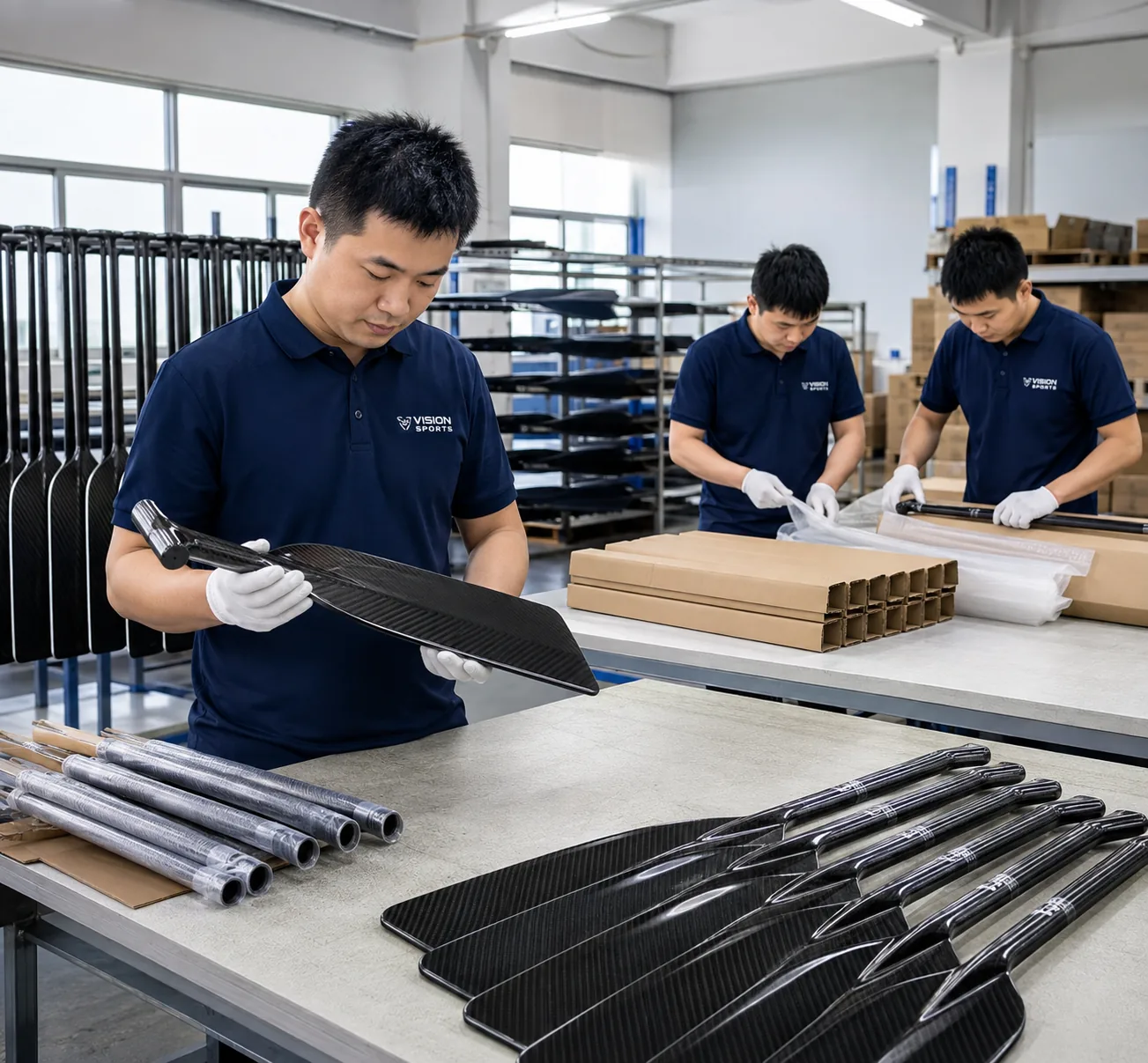

Manufacturing and product support
Once a model is selected, we review the overall length, blade profile and dimensions, shaft material, finish, artwork and packaging requirements with your team. The approved sample then becomes the reference for bulk production.
Dragon boat paddle questions
Shortlist a model here, then send the exact construction and order requirements for review.
Ask about a modelThe current range includes LZ04, LZ05, LZ06 and LZ07. All four use carbon blades. LZ04 covers 115-130 cm, while LZ05, LZ06 and LZ07 are available at 125 or 130 cm.
LZ04 has a 48.5 × 17.5 cm blade and a 115-130 cm length range. LZ05 has a 48.1 × 17.9 cm blade and comes in 125 or 130 cm. The shaft options for both are Ø29 mm fiberglass or carbon.
Both have a 47.9 × 18 cm carbon blade and 125 or 130 cm length options. They remain separate model profiles, so buyers should review the product images and confirm the preferred shape, finish and sample before ordering.
Yes. Carbon blade construction is specified for LZ04, LZ05, LZ06 and LZ07.
Ø29 mm fiberglass and carbon shaft options are available for all four models. The selected shaft material should be stated in the quotation and sample specification.
Use full carbon dragon boat paddle only when both the blade and shaft are confirmed as carbon fiber. A carbon blade paired with a fiberglass shaft should be described by its separate blade and shaft materials.
Start with the available model lengths. LZ04 covers 115-130 cm, while the other models come in 125 or 130 cm. Send any different length requirement for a model-specific review.
Logo artwork, color references, print coverage and surface appearance can be reviewed for an OEM order. Available methods depend on the selected model, finish and order requirements.
Include the reference model, overall length, shaft material, intended use, target quantity, sample requirement, logo artwork, finish and packaging needs.
No universal MOQ or production time applies to every project. These terms are confirmed after the model, materials, customization, sample plan, packaging and quantity have been reviewed.
Start with LZ04, LZ05, LZ06 or LZ07
Reference a model from this page and tell us the length, shaft material, branding, sample and packaging requirements. Aaron Deng will coordinate the first product and quotation review.
